ONLINE SEALING

MAKSİMUM İŞ GÜVENLİĞİ SAĞLAR!

ONLINE SEALING

PROVIDES MAXIMUM PROSES AND WORK SAFETY!

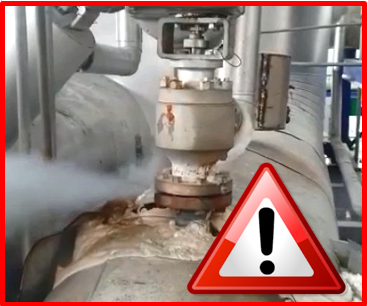

FLANŞIMDA BUHAR KAÇAĞI VAR NASIL DURDURULUR?,

HAT ÜZERİNDE FLANŞTAN BUHAR KAÇAĞI DURDURMA,

FLANŞ BUHAR KAÇAĞI NASIL ÖNLENİR?,

HATTI DURDURMADAN FLANŞ KAÇAKLARI NASIL DURDURULUR?,

FLANŞTAN YÜKSEK BASINÇLI BUHAR KAÇAKLARINI DURDURMA,

-----------------------------------------------------

HOW TO STOP STEAM LEAKAGE FROM A FLANGE?,

STOPPING STEAM LEAKS ON A PIPELINE FLANGE,

HOW TO PREVENT FLANGE STEAM LEAKAGE?,

HOW TO ELIMINATE FLANGE LEAKS WITHOUT SHUTTING DOWN THE LINE?,

STOPPING HIGH-PRESSURE STEAM LEAKS FROM FLANGES,

ON-LINE STEAM LEAK REPAIR, ON-LINE LEAK REPAIR,

HOW CAN I STOP STEAM LEAK FROM FLANGE?

KULLANIM AMACI

30 BAR BASINCA KADAR, KIZGIN SU, KIZGIN YAĞ, BUHAR, AKARYAKIT, DOĞALGAZ, SOLVENT, ASİT, KOSTİK VE TEHLİKELİ PROSES KİMYASALLARININ TRANSFER EDİLDİĞİ HATLAR ÜZERİNDE YER ALAN FLANŞLI BAĞLANTILAR KAÇAK ANINDA MÜDAHALE VE KAÇAĞIN KESİLMESİ AMACIYLA KULLANILIR.

ÖZEL KELEPÇE-BOĞMA GİBİ APARATLAR İLE BİRLİKTE KULLANILDIĞINDA 30 BAR BASINCIN ÜZERİNDEKİ HATLARDA VE AYRICA DİRSEK, TEE VE DÜZ BORULARDA DA UYGULAMA YAPILABİLİR.

PROSESİNİZİ DURDURMADAN, TÜM FLANŞ KAÇAKLARINIZI İŞLETMENİZE GELEREK YERİNDE DURDURUYORUZ!

TÜRKİYEDE YAPILMIŞ FLANŞ KAÇAĞI ÖNLEME DURDURMA UYGULAMALARIMIZ İÇİN AŞAĞIDAKİ VİDEOLARI İZLEYİNİZ.

-----------------------------------------------------

PURPOSE OF USE

DESIGNED FOR ON-SITE INTERVENTION AND IMMEDIATE SEALING OF LEAKS ON FLANGED CONNECTIONS LOCATED ON PIPELINES TRANSFERRING HOT WATER, HOT OIL, STEAM, FUEL, NATURAL GAS, SOLVENTS, ACIDS, CAUSTICS, AND HAZARDOUS PROCESS CHEMICALS, UP TO 30 BAR PRESSURE.

WHEN USED TOGETHER WITH SPECIAL TOOLS SUCH AS CLAMPS OR CHOKING DEVICES, THE SYSTEM CAN ALSO BE APPLIED ON PIPELINES ABOVE 30 BAR, AS WELL AS ON ELBOWS, TEES, AND STRAIGHT PIPES.

WE STOP ALL YOUR FLANGE LEAKS ON-SITE AT YOUR FACILITY — WITHOUT SHUTTING DOWN YOUR PROCESS!

TO SEE EXAMPLES OF FLANGE LEAK PREVENTION AND REPAIR APPLICATIONS CARRIED OUT IN TURKEY, PLEASE WATCH THE VIDEOS BELOW.

TESLİMAT KAPSAMI

KİT, ÖZEL TAŞIMA ÇANTASI İÇERİSİNDE AŞAĞIDAKİ MALZEMELERDEN OLUŞUR;

* 1 AD. LOCCO EN211470-S ENJEKSİYON SİLİNDİRİ

* 2 AD. FARKLI ÖLÇÜDE FLANŞ İŞKENCESİ

* 1 AD. ÇELİK BANDAJ GERDİRME APARATI

* 1 AD. ÇELİK BANDAJ RULOSU (3 METRE)

* 20 AD. ÇELİK BANDAJ KİTLEME KLİPSİ

* 1 ADET ALÜMİNYUM TAŞIMA ÇANTASI

* 2 ŞER ADET 12,13,16,20,22,24,27,30MM SAPLAMA UYUMLU ENJEKSİYON VALFİ

* 4 ADET EN-25 ENJEKSİYON VALFİ

* 700BAR BASINÇLI, MEKANİK VALFLİ VE BASINÇ GÖSTERGELİ HİDROLİK POMPA

* 4M BOYUNDA YÜKSEK BASINÇ HORTUMU

* 48 ADET SEAL TEAM LIP256TA/F(9005-11) MASTİK (20X85MM,SİYAH) SENTETİK BAZLI KAÇAK ÖNLEME KOMPOZİTİ

-----------------------------------------------------

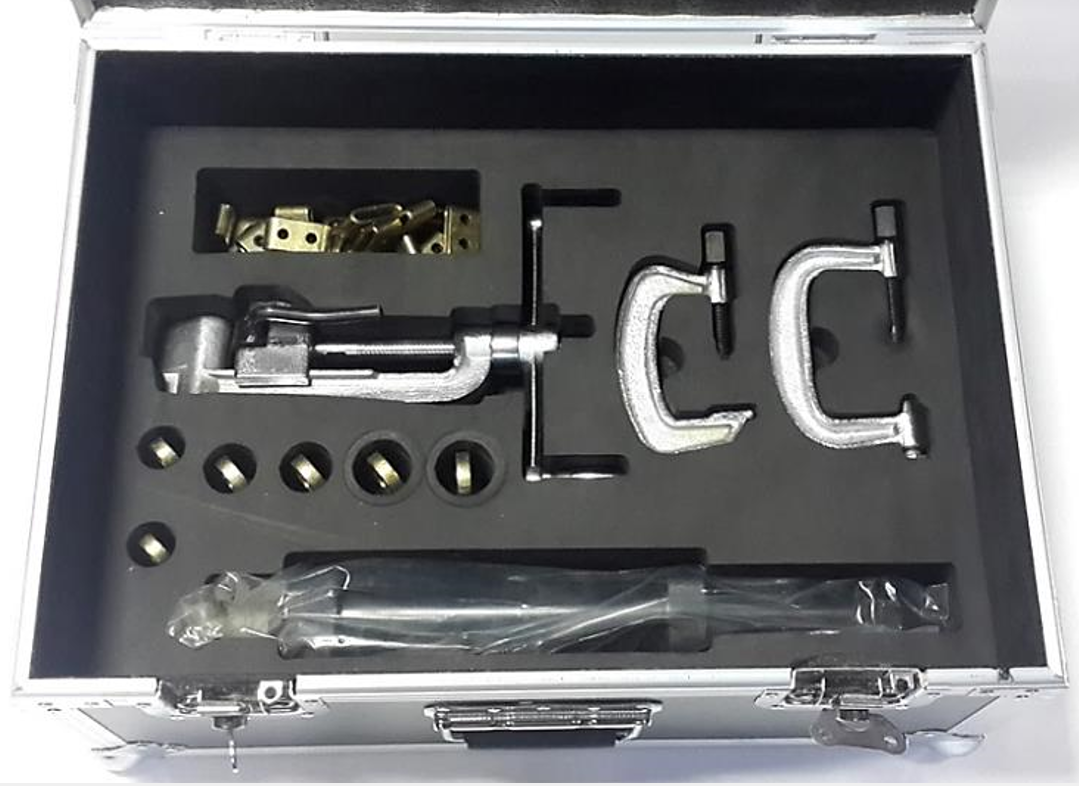

SCOPE OF DELIVERY

THE KIT IS SUPPLIED IN A SPECIAL CARRYING CASE AND CONSISTS OF THE FOLLOWING ITEMS:

*1 PC. LOCCO EN211470-S INJECTION CYLINDER

*2 PCS. FLANGE CLAMPS IN DIFFERENT SIZES

*1 PC. STEEL BAND TENSIONING TOOL

*1 PC. STEEL BAND ROLL (3 METERS)

*20 PCS. STEEL BAND LOCKING CLIPS

*1 PC. ALUMINUM CARRYING CASE

*2 PCS. EACH OF INJECTION VALVES COMPATIBLE WITH 12, 13, 16, 20, 22, 24, 27, 30MM STUDS

*4 PCS. EN-25 INJECTION VALVES

*1 PC. 700 BAR HYDRAULIC PUMP WITH MECHANICAL VALVE AND PRESSURE GAUGE

*1 PC. 4M HIGH-PRESSURE HOSE

*48 PCS. SEAL TEAM LIP256TA/F(9005-11) SEALANT (20X85MM, BLACK) SYNTHETIC-BASED LEAK PREVENTION COMPOUND

TEDARİK ŞEKLİ VE KULLANICI EĞİTİMİ HAKKINDA

SİSTEMİ SİPARİŞ EDEN MÜŞTERİMİZE 1 KEREYE MAHSUS OLMAK ÜZERE SAHADA BEDELSİZ SÜPERVİZÖRLÜK VE UYGULAMA EĞİTİMİ VERİLMEKTEDİR. BU HİZMET ESNASINDA SAHADAKİ MEVCUT KAÇAĞA MÜDAHALE EDİLMEKTE VE KAÇAK KESİLMEKTEDİR.

SUPPLY METHOD AND USER TRAINING

A ONE-TIME FREE ON-SITE SUPERVISION AND APPLICATION TRAINING IS PROVIDED TO OUR CUSTOMERS WHO ORDER THE SYSTEM. DURING THIS SERVICE, AN EXISTING LEAK IN THE FIELD IS INTERVENED AND THE LEAK IS STOPPED.

ÖNEMLİ HUSUSLAR

UYGULAMADAKİ AMAÇ TESİSİN DURUŞ YAPMASINA GEREK OLMADAN, BİR SONRAKİ DURUŞA KADAR KAÇAĞIN ENGELLENMESİDİR.

MÜDAHALE EDİLEN NOKTADA TEKRAR KAÇAK OLUŞABİLİR. BU DURUMDA TEKRAR ENJEKSİYON GEREKECEKTİR. BU SEBEPLE SETİN MÜŞTERİ TARAFINDAN SATIN ALINMASI VE SAHADA BULUNDURULMASI GEREKLİDİR.

EĞİTİM ESNASINDA SAHA EKİBİNİZE MÜDAHALE İÇİN GEREKLİ BİLGİLER VERİLMEKTEDİR. SADECE HİZMET ALIMI VEYA SETİN KİRALANMASI ŞEKLİNDE UYGULAMA YAPILAMAMAKTADIR.

UYGULAMA ÖRNEKLERİ İÇİN VİDEOLARI İZLEYİNİZ, YENİ UYGULAMALAR İÇİN SİTEMİZDEN VİDEOLARI TAKİP EDEBİLİRSİNİZ.

----------------------------------------------

IMPORTANT NOTES

THE AIM OF THE APPLICATION IS TO PREVENT LEAKAGE UNTIL THE NEXT SHUTDOWN WITHOUT THE NEED FOR A PLANT SHUTDOWN.

LEAKAGE MAY RECUR AT THE INTERVENTION POINT. IN THIS CASE, RE-INJECTION WILL BE REQUIRED. FOR THIS REASON, THE SET MUST BE PURCHASED BY THE CUSTOMER AND KEPT ON SITE.

DURING TRAINING, THE NECESSARY INFORMATION FOR INTERVENTION IS PROVIDED TO YOUR FIELD TEAM. APPLICATION CANNOT BE CARRIED OUT SOLELY THROUGH SERVICE PROCUREMENT OR RENTAL OF THE SET.

WATCH THE VIDEOS FOR APPLICATION EXAMPLES; YOU CAN FOLLOW THE VIDEOS ON OUR WEBSITE FOR NEW APPLICATIONS.

NASIL UYGULANIR

FLANŞLARIN ARASINA ÖRGÜ SALMASTRA SIKIŞTIRILIR, ÖZEL APARAT İLE ÇELİK BANDAJ FLANŞLARIN ÇEVRESİNE SARILIR VE KİLİTLENİR. İŞKENCE İLE FLANŞLAR YAPIŞIK TUTULURKEN UYGUN SAYIDA SAPLAMA SÖKÜLEREK ENJEKSİYON VALFİ TAKILIR. VALFLERE ENJEKSİYON SİLİNDİRİ İLE UYGUN MASTİK BASARAK KAÇAK BLOKE EDİLİR.

----------------------------------------------

HOW TO APPLY

A BRAIDED PACKING IS INSERTED BETWEEN THE FLANGES. A SPECIAL APPARATUS IS USED TO WRAP A STEEL BAND AROUND THE FLANGES AND LOCK IT IN PLACE. WHILE THE FLANGES ARE HELD TOGETHER TIGHTLY USING A CLAMP, AN APPROPRIATE NUMBER OF STUDS ARE REMOVED AND INJECTION VALVES ARE INSTALLED. THE LEAK IS SEALED BY INJECTING A SUITABLE MASTIC INTO THE VALVES USING AN INJECTION PUMP.

SARF MALZEMESİ SİPARİŞLERİ

----------------------------------------------

CONSUMABLE MATERIAL ORDERS
