Product Features
- Ability to start/stop the drip flow at any desired moment
- Simple and quick installation and adjustment
- No moving parts requiring maintenance or replacement
- Precise adjustment with transparent tube for easy monitoring
- Suitable for both single and multi-point lubrication
- Compatible with mineral, semi-synthetic and synthetic oils
Warnings
Never suitable for water, chemical solutions (acidic - caustic), solvents and fuels!
Maximum operating temperature: 80°C
Technical Specifications
| Order Code |
Capacity |
Connection |

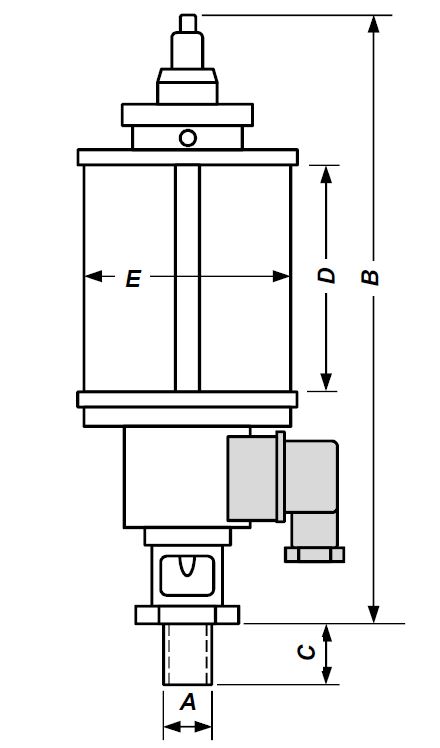

Dimensions (mm) |
Solenoid Valve |
| UNIOELER ELO 1000 220V AC |
1000cc |
1/2" BSP Male |
B=240, C=15, D=120, E=100 |
220V AC Normally Closed (NC) |
| UNIOELER ELO 2000 24V DC |
2000cc |
1/2" BSP Male |
B=285, C=15, D=150, E=133 |
24V DC Normally Closed (NC) |
Compatible Oil Viscosities
ISO VG 5, 10, 15, 22, 32, 46, 68 and 100
For our other products and technical details, please contact us
